What Are 3D Printing Settings and Parameters?

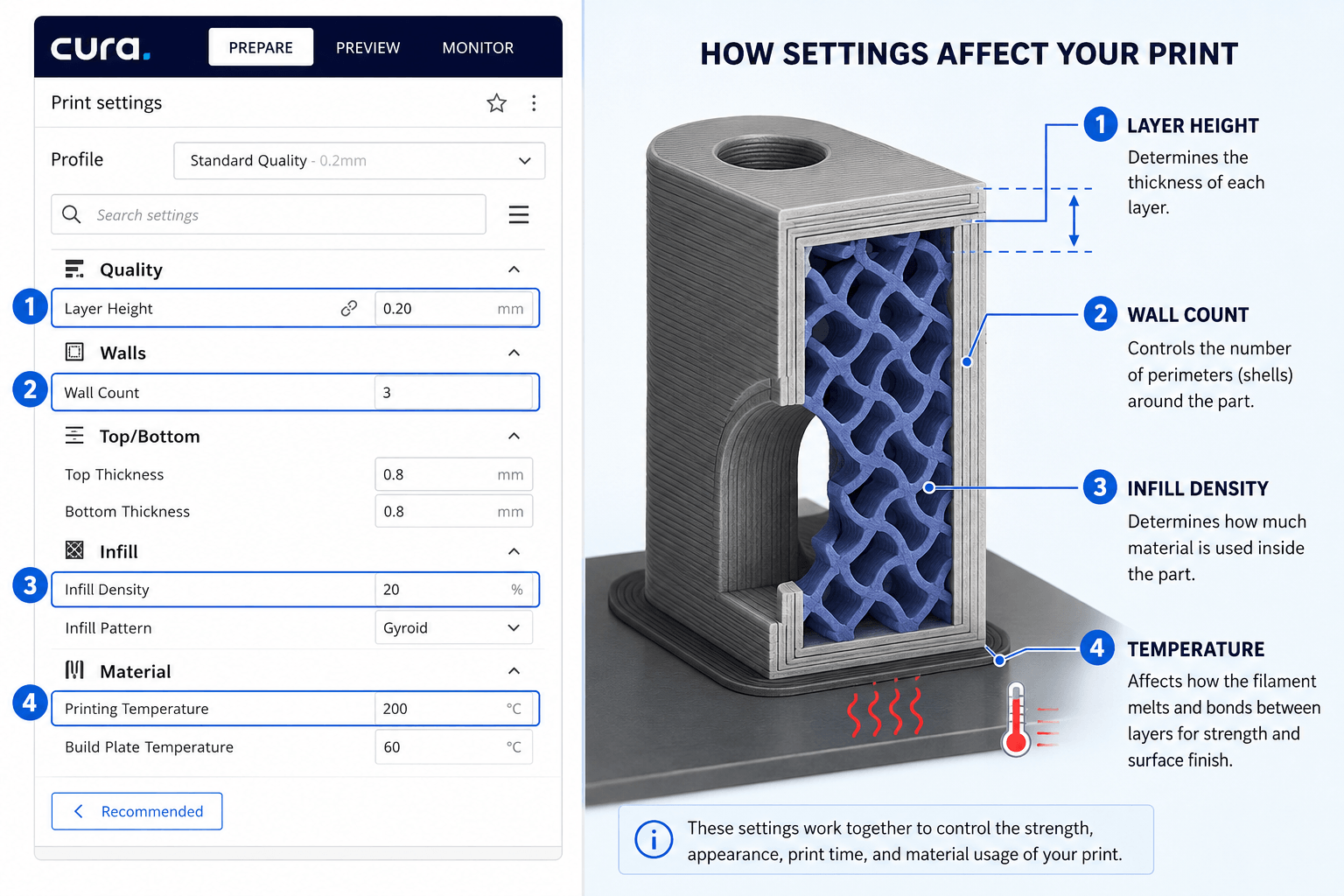

3D printing settings are the instructions you give your slicer software before it converts a 3D model into G-code, the machine-readable language your printer understands. The same STL file can produce a flawless print on one set of parameters and a complete failure on another. These settings live in three places: your Cura slicer profile, your printer's firmware configuration, and the material profile that ships with most filament spools. The workflow is straightforward. Import your model, configure the settings in your slicer, hit slice, and send the G-code to your printer. The hard part is knowing which of those hundred-plus settings to actually change.

Why Adjustment Order Matters More Than Individual Values
Here's something most beginner guides don't tell you: the order in which you adjust settings matters more than the specific values you choose. Bumping your infill to 80% won't fix top-layer gaps. The real problem is almost certainly that you don't have enough solid top layers. Lowering your layer height won't help if your nozzle temperature is too cold for the material you're using.
The mistake is treating all parameters as equally important. They're not. Some settings determine whether your print looks complete. Others determine whether you can physically print the shape at all. A third group only affects how fast the print finishes or how much material it consumes.
Thinking about settings in phases solves this. Get the structure right first, then worry about efficiency, then polish quality. Change one variable at a time, observe the result, and move to the next. That discipline alone will eliminate most of the frustration beginners experience.
Phase 1 Settings: Walls, Top Layers, and Bottom Layers
These three parameters determine whether your print looks finished or half-baked. If you only have time to change a few things, start here.
Wall Thickness / Shell
Walls are the outer perimeters of your print. They form the visible surface, the structural spine, and the barrier between the inside of your part and the outside world. The setting controls how many concentric rings of plastic the slicer lays down before switching to infill.
For a 0.4mm nozzle, three walls give you roughly 1.2mm of shell thickness. That's enough for most functional parts: tool holders, brackets, and mechanical enclosures. Two walls work fine for decorative pieces where strength isn't a priority. Dropping to a single wall saves time but produces fragile parts that crack under minimal load.
The most common wall-related mistake is reducing wall count to speed up a print, then being surprised when the part splits along layer lines. Walls are cheap insurance. Three perimeters add maybe ten minutes to a typical print while roughly doubling the part's resistance to lateral impact.
Top Layers and Bottom Layers
The top layers form the roof of your print. Bottom layers form the floor. If you've ever looked at a print and seen the infill pattern bleeding through the top surface, the fix isn't better infill. It's more top layers.
With a 0.2mm layer height, five top layers give you a 1mm solid roof. That's usually enough to cover the infill completely and produce a smooth surface. If you drop your layer height to 0.12mm for detail work, you'll need more top layers (around eight) to achieve the same total roof thickness, because each layer is thinner.
Bottom layers serve a different purpose. They provide the foundation that bonds to your build plate. Three or four solid bottom layers give the print a stable base and help prevent warping at the edges.

Phase 2 Settings: Supports and Build Plate Adhesion
Once your part has solid walls and a complete roof, the next question is whether you can actually print its shape.
Support Structures
Supports are sacrificial plastic scaffolding printed beneath overhangs, bridges, and any geometry that extends beyond what the printer can build in open air. The key parameter here is the support overhang angle, typically set to 45 degrees. Anything steeper than 45 degrees from vertical gets support material underneath it.
Two main support types exist in PrusaSlicer and most other slicers. Linear or grid supports create a regular lattice beneath the overhang. They're reliable, easy to remove, and work well for most geometries. The tree supports a branch outward from the build plate like a tree growing toward the overhang. They use significantly less material and leave fewer scars on the part surface, but can fail on complex branching geometries.
For most prints, the default support settings work fine. Enable supports, leave the overhang angle at 45 degrees, and let the slicer figure out the rest. The one adjustment worth making is switching to tree supports when printing organic shapes like figurines or curved surfaces, where the reduction in contact points noticeably improves surface finish. Our guide to tree supports in 3D printing covers the details of each support type and when to use them.
Build Plate Adhesion
This setting controls what the slicer prints around the base of your model to help it stick to the build surface.
A skirt draws a single loop around the print at a small offset. It serves mainly as a prime for the nozzle and a visual check that your bed leveling is close enough. Use it when your printer is well-calibrated, and your print has a large, flat base.
A brim extends the first layer outward from the print's edge by a few millimeters. The wider base area dramatically improves adhesion for small-footprint prints and tall, top-heavy models. It peels off easily after printing and leaves minimal marks. Brim is the right choice for about 80% of prints that need extra adhesion help.
A raft prints an entirely separate platform underneath your model. The print sits on top of this raft rather than directly on the build surface. Rafts solve serious adhesion problems, especially with materials like nylon or flexible TPU that don't stick well to standard surfaces. The trade-off is longer print time and a rougher bottom surface that requires sanding or scraping.
Phase 3 Settings: Infill and Print Speed
Once your part is structurally sound and geometrically printable, infill and speed control how efficiently it gets made.
Infill Density and Pattern
Infill is the internal structure that fills the space between your walls. It ranges from 0% (completely hollow) to 100% (solid plastic throughout). Most everyday prints work well at 10% to 25% infill. The walls do the heavy lifting for strength; infill mostly prevents the walls from collapsing inward.
The pattern you choose matters more than most people realize. Grid and line patterns are the default in most slicers. They're fast, predictable, and adequate for general use. Gyroid infill creates a continuous 3D wave pattern that distributes stress equally in all directions. It uses less material than the grid at the same density while producing equal or better strength. Cubic and triangular patterns offer strong directional performance for parts that bear loads along specific axes.
A practical rule that saves both time and material: increasing your wall count from two to three perimeters gives you roughly the same strength gain as doubling your infill from 15% to 40%, but prints faster because perimeter lines are quicker to lay down than infill patterns.
Print Speed
Speed interacts with almost every other parameter. Running your printer at 100 mm/s instead of 50 mm/s halves your print time, but it also gives the plastic less time to cool between layers. That can cause stringing, blobbing, poor layer adhesion, and surface artifacts.
For quality prints on standard FDM printers, 40 to 60 mm/s is a reliable range. Draft prints where surface finish doesn't matter can run at 60 to 80 mm/s without major issues. Modern fast printers like the Bambu Lab X1C or Prusa XL can push 150 mm/s or higher with tuned profiles, but they achieve that through hardware designed specifically for speed: high-flow hotends, rapid kinematics, and advanced input shaping.
The useful relationship to remember is speed and temperature. If you bump your print speed up by roughly 20%, try raising your nozzle temperature by 5 degrees Celsius. The extra thermal energy helps maintain consistent extrusion at higher feed rates.
Phase 4 Settings: Temperature and Cooling
Temperature and fan settings fine-tune your surface finish and layer bonding. Get the structural settings right first, then dial these in.
Nozzle Temperature
Every filament has a recommended temperature range printed on the spool box. PLA typically runs between 190 and 220 degrees Celsius. PETG needs 230 to 260. ABS falls in a similar range but requires a heated enclosure for consistent results.
Start in the middle of the recommended range and adjust based on what the print tells you. Under-extrusion (visible gaps between lines, clicking from the extruder gear) usually means the temperature is too low. Excessive stringing, blobbing at corners, and a glossy or slightly burnt surface suggest the temperature is too high. Changes of 5 degrees are enough to see a difference. Don't jump 15 degrees in one step.
Bed Temperature
Your heated bed keeps the bottom of the print warm enough to prevent warping and ensure first-layer adhesion. PLA works well at 50 to 60 degrees Celsius. PETG needs 60 to 80. ABS requires 90 to 110 plus an enclosure to trap the heat.
One thing to watch with PETG: it sticks aggressively to PEI build surfaces at higher bed temperatures. A glue stick or painter's tape on the build surface creates a releasable barrier that prevents the part from bonding so hard you can't remove it without damage.
Cooling Fan
The cooling fan blows air onto the freshly extruded plastic to solidify it before the next layer goes down. How much cooling you need depends entirely on the material.
PLA benefits from aggressive cooling. Set the fan to 50% to 100% after the first two or three layers, and you'll get sharper details and fewer sagging overhangs. PETG is the opposite. It needs heat to bond layers properly, so keep the fan off or below 30%. Cooling PETG too fast causes the layers to separate under stress. ABS requires zero fan cooling. Any cool air hitting an ABS print mid-process can cause immediate cracking and delamination.
Most slicers support fan speed curves that gradually increase cooling as the print gets taller. That's worth enabling for PLA: the first few layers need heat for bed adhesion, while upper layers benefit from maximum cooling for detail.

Phase 5 Settings: Advanced Parameters Worth Knowing
These settings don't need attention on every print, but they're worth understanding once the basics feel comfortable.
Retraction. When the print head moves between two separated sections of the print, retraction pulls the filament back slightly to prevent oozing. Direct-drive extruders typically need 4 to 6mm of retraction distance. Bowden setups (where the extruder motor sits on the frame, not the print head) need 5 to 8mm because there's more filament between the gear and the hotend. Retraction speed of 25 to 45 mm/s works for most setups. If you see fine plastic threads connecting separate parts of your print, increase the retraction distance before changing anything else.
Layer height. This controls the z-resolution of your print, or how thick each horizontal slice is. At 0.2mm, you get a good balance of speed and surface quality. Drop to 0.08 or 0.12mm for miniatures, figurines, or anything with fine vertical detail. Go up to 0.28 or 0.3mm for quick prototype prints where aesthetics don't matter. Thinner layers produce smoother curved surfaces, but significantly increase print time because the printer has to complete more passes.

Extrusion width. This is the width of each printed line, which usually sits slightly wider than the nozzle diameter. A 0.4mm nozzle with a 0.45mm extrusion width overlaps adjacent lines slightly, creating stronger bonds. Narrower widths improve detail resolution at the cost of print time. Wider widths strengthen the part but reduce fine detail.
Flow rate. This adjusts the total amount of plastic the extruder pushes through the nozzle, expressed as a percentage. At 100%, the slicer assumes your filament diameter matches the setting exactly. In reality, filament diameter varies slightly from spool to spool. If your prints show bulging seams or walls that look thicker than they should, dropping the flow rate to 95 or 97% often cleans things up. If you see gaps in solid areas, nudging it up to 101 or 103% can help.
Quick-Reference Table: Starter Settings for PLA
These values work as a reliable starting point for most PLA prints on a standard 0.4mm nozzle FDM printer. Adjust one setting at a time from here.
Setting | Starter Value | What It Controls |
|---|---|---|
Layer Height | 0.2mm | Surface quality vs. print speed |
Wall Count | 3 perimeters | Outer strength and appearance |
Top Layers | 5 | Top surface smoothness |
Bottom Layers | 4 | Bottom surface and adhesion |
Infill | 15%, Grid | Internal strength vs. print time |
Support Overhang Angle | 45 degrees | Where support material generates |
Nozzle Temperature | 200 degrees C | Extrusion consistency |
Bed Temperature | 55 degrees C | First-layer bonding |
Cooling Fan | 100% after Layer 3 | Detail sharpness, overhang quality |
Print Speed | 50 mm/s | Total print time vs. surface finish |
Build Plate Adhesion | Brim | Keeps small-footprint prints anchored |
Prepare Your Model Before You Open the Slicer
Slicer settings can't rescue a bad mesh. Models downloaded from repositories like Thingiverse or Printables often carry non-manifold edges, internal faces, inverted normals, or micro-gaps that confuse the slicer and produce unpredictable results. If you've ever seen a print come out with phantom geometry, missing faces, or bizarre support structures where none should exist, the STL file itself is usually the culprit.
If you're unsure how to check for these problems, our guide on how to repair mesh for 3D printing walks through the most common fixes.

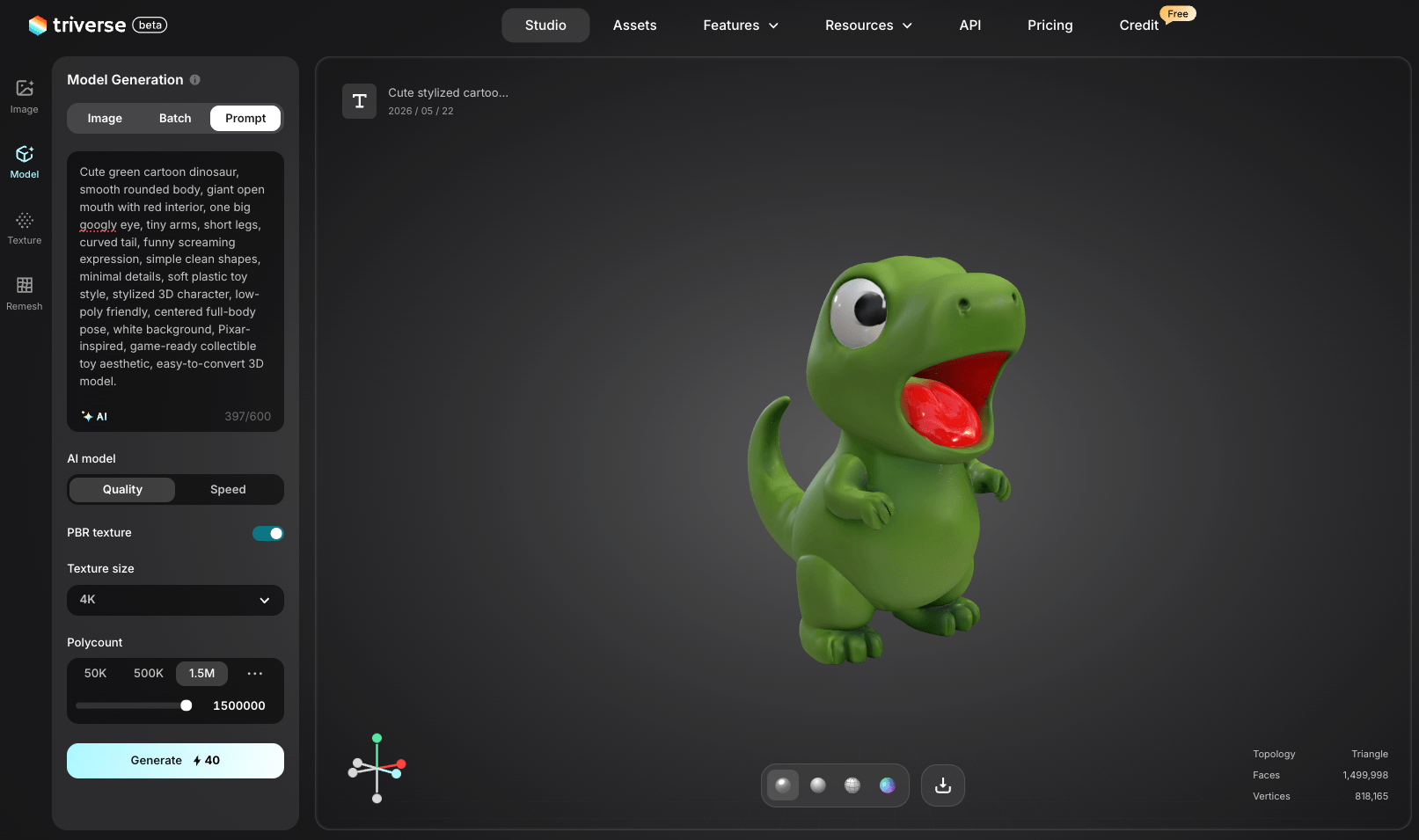

One way to avoid mesh problems entirely is to generate your model on a platform that produces print-ready geometry by default. Triverse AI is an AI 3D model generator that creates watertight, manifold meshes designed to import cleanly into any slicer. You can generate a model from a text prompt ("a sci-fi helmet with visor slots") or by uploading a reference image. The platform handles topology automatically, so the exported file arrives already watertight without manual repair.
How to export a print-ready model from Triverse AI:

- Generate the model. Type a text prompt or upload a reference image on the Triverse platform. The AI produces a 3D mesh in seconds.
- Check the preview. Rotate and inspect the model in the browser. If the shape looks right, the geometry is already manifold and watertight.
- Export. Choose your format. Triverse supports STL, OBJ, GLB, FBX, 3MF, and USDZ export. For most FDM prints, STL or 3MF works best because every slicer accepts them.
- Import into your slicer. Open the exported file in Cura, PrusaSlicer, or Bambu Studio. No mesh repair step needed — the file is already clean.
The main advantage isn't just saving repair time. A clean AI-generated mesh gives you predictable results when you apply the settings from this guide, because you're not fighting hidden geometry errors while trying to tune your parameters.
A clean mesh combined with the right settings from this guide will give you consistent, predictable results across prints.
Troubleshooting Common Print Problems
This table maps frequent issues to the parameter most likely causing them. For a deeper dive into specific quality defects with photo references, Simplify3D's print quality troubleshooting guide is a thorough resource. Always change only one setting at a time when troubleshooting.
Problem | Most Likely Setting to Blame | First Adjustment to Try |
|---|---|---|
Print lifts off the bed | Bed temperature, bed leveling | Raise bed temp by 5 degrees, re-level |
Gaps showing through the top | The top layer count too low | Add 2 more top layers |
Stringing between parts | Retraction distance too low | Increase retraction by 1-2mm |
Rough, visible layer lines | Layer height too thick | Drop to 0.12mm |
Stringing at travel moves | Retraction or temperature | Increase retraction, lower temp 5 degrees |
Bumpy, incomplete top surface | The top layers too thin | Add top layers, raise fan speed |
Extruder clicking | Temperature too low | Raise nozzle temp by 5 degrees |
Part cracks along layer lines | Layer bonding, temperature | Lower layer height, raise temp 5 degrees |
FAQs: 3D Printing Settings and Parameters
Bottom Line
The difference between a beginner who struggles and someone who consistently produces good prints isn't a secret settings file or an expensive printer. It's a systematic approach to adjustment. Get your walls and top layers right first. Then figure out supports and adhesion. Tweak infill and speed for efficiency. Dial in the temperature and cooling last. Change one setting at a time, note what happens, and build intuition from there.
Once your model's geometry is clean and your slicer is configured with the right priorities, the results become predictable. That's the real goal. Not memorizing a hundred parameters, but understanding which handful actually matters for the print sitting on your build plate right now.
